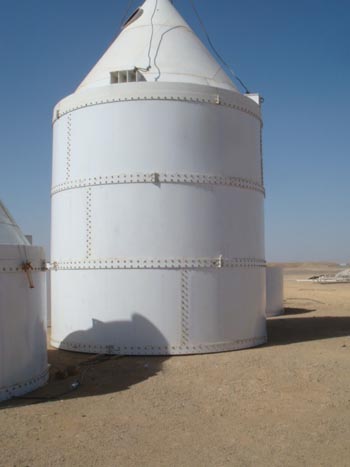

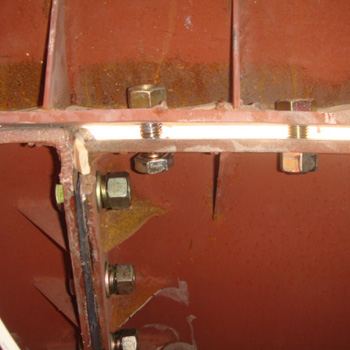

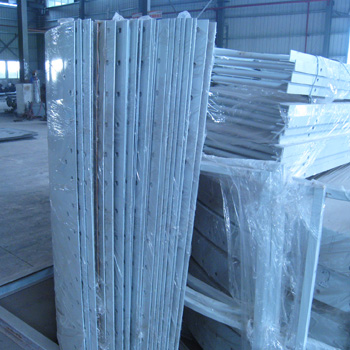

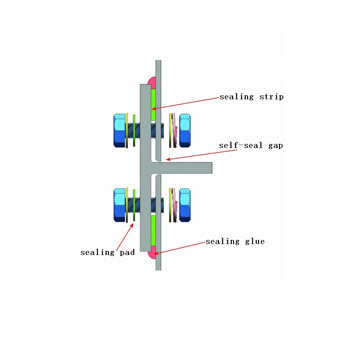

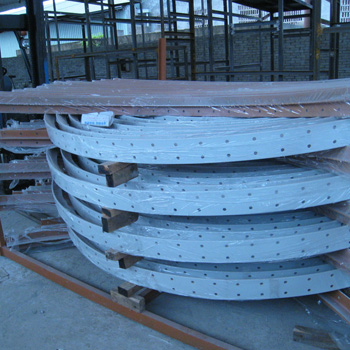

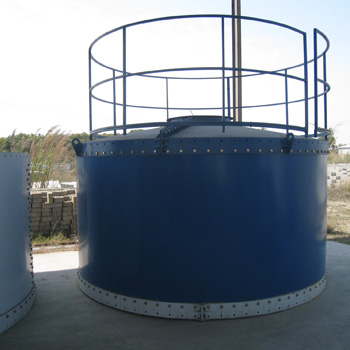

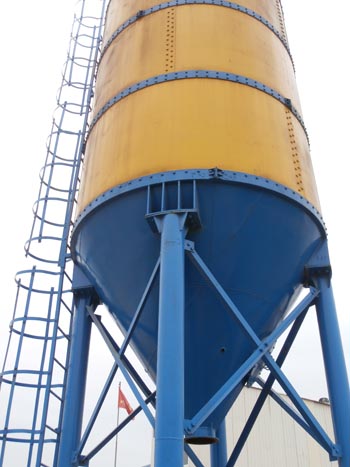

The Bolted silo is also called sectional silo, the silo body is connected by high strength bolts, so no matter what size you need, all parts can be loaded into container, which is easy to transport and save freight. The silo plate is flat carbon steel sheet, the flange is detachable T shape flange.
The diameter is 3~12m, silo volume can be up to 2000m3. The silo can be disassembled and reused at other places.
With mature technology, the silo is reliable in strength and airtight and can be produced very economically. The separate segments- sealed according to the special applications are prefabricated in units, which can be transported by all usual possibilities. The silos will be delivered with oblique, flat or without roofs.
Used for: Powdery and coarse bulk materials as cement, lime, gypsum, fly ash, clinker, Minerals and aggregates.

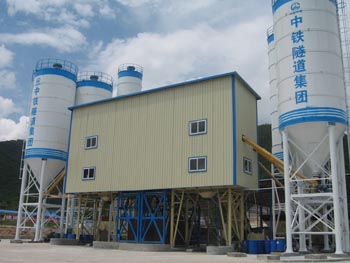

Application: Loading and unloading plants, Dosing-Weighing and Mixing plants, Preparation plants, transitional silo.
Advantages: Designed and statical optimized silos, precise elements due to industrial fabrication.
Short and cost-economic construction, erection seasonally independent.

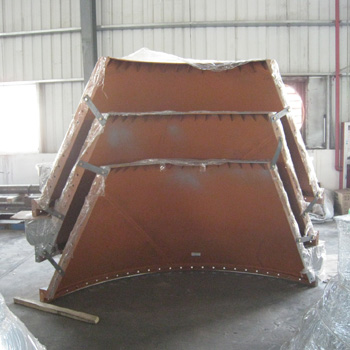

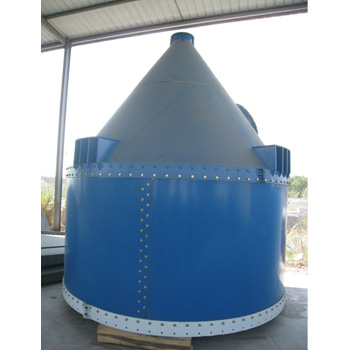

The discharge height depends on the method of discharge, withdrawal by conveyor or bulk loading on truck. The cone angle can be designed according to customer's requirements.
Long service life, can be up to 30 years.
| Volume(T) | 50 | 60 | 100 | 150 | 150 | 200 | 250 | 300 |
| OD(mm) | 3100 | 3100 | 3100 | 3300 | 3800 | 4500 | 4500 | 5000 |
| Cylinder height (mm) | 4681 | 6200 | 10755 | 12302 | 9239 | 9265 | 12300 | 10783 |
| Volume(T) | 400 | 500 | 800 | 1000 | 2000 | |||
| OD(mm) | 5700 | 6500 | 8000 | 8000 | 10000 | |||
| Cylinder height (mm) | 12300 | 12302 | 10783 | 13820 | 18378 | |||
|
Remark: the cone is 60 degrees, the volume is based on the material is cement with the density of 1.3T/m3, if the material is different, please tell us the material type and granule size and density. |
||||||||
