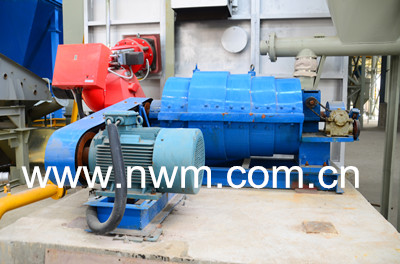

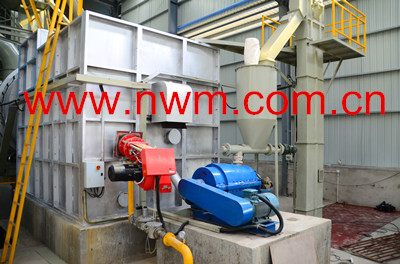

LCM Coal Powder Furnace
The coal grinding machine crush the coal into fine coal powder(its fineness is about 60-80mesh) then spray into the furnace chamber to be burnt, the coal powder just stay 1~2 seconds in the chamber then burn out in a short time. In the chamber, the air adjust valve ensure the air mix with coal powder uniformly and ensure burn efficiently.
The coal powder furnace has been widely applied in supplying the heat for the drying and calculation of the slag, clay, coal powder, compound fertilizer, nature gypsum, nonmetal mineral powder and all kinds of raw materials which are in the industries of metallurgy, chemistry, building material, nonmetal mine and etc.
Character:
1.It is simple and flexible in operation with good adjust performance.
The chamber inside temperature rise up rapidly, start from shutting down, just 20-30 minutes, it can run with full load.
2.Lower labor strength, high automation level,
3.Can be ignited with diesel burner, very convenient,
4.Running cost is low.

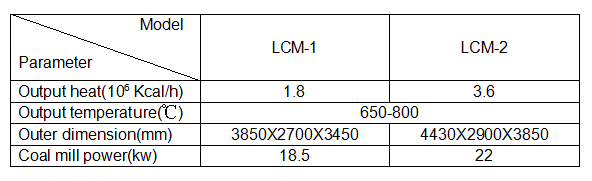

Technical parameter:
